Trituratori - Cippatori

Sminuzzano sia piccole che grandi potature di aree verdi,
diminuendone il volume per facilitarne il trasporto e ottenere ottimo compost o cippato.

Airing Machines

They remove the thatch from the lawn and thin out the grass roots.

Shredders - Chippers

Leaf vacuums

They suck leaves and light waste from the ground.

VERSION | R95T

Hourly capacity

3 - 6

m³/h*

Throat opening

130 x 170

mm

70

Ø max.* mm

1

Blades

8

Hammers

1

Counter-blade

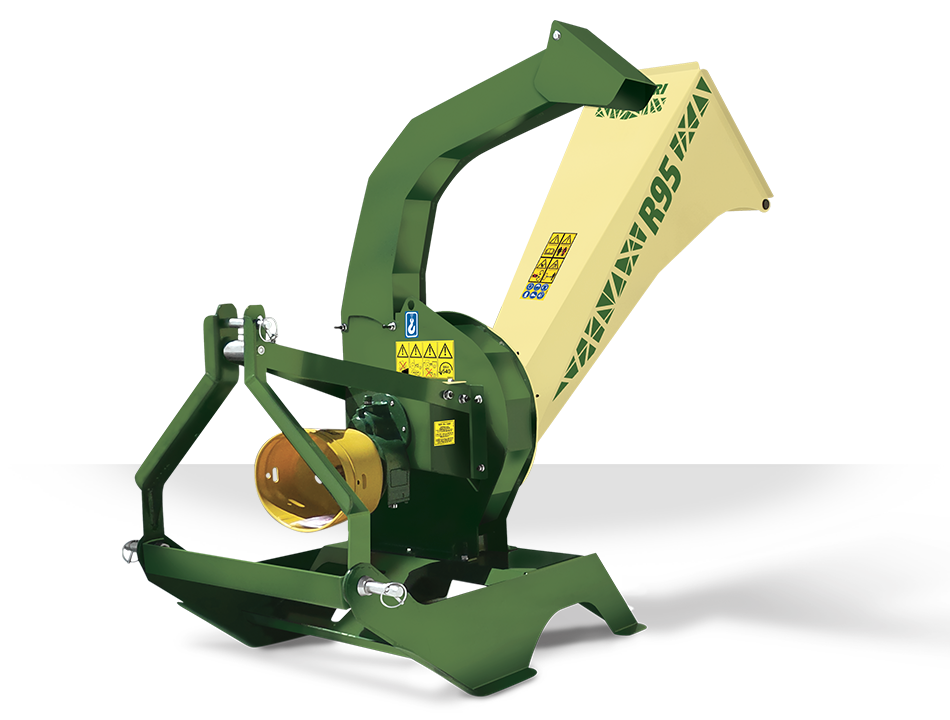

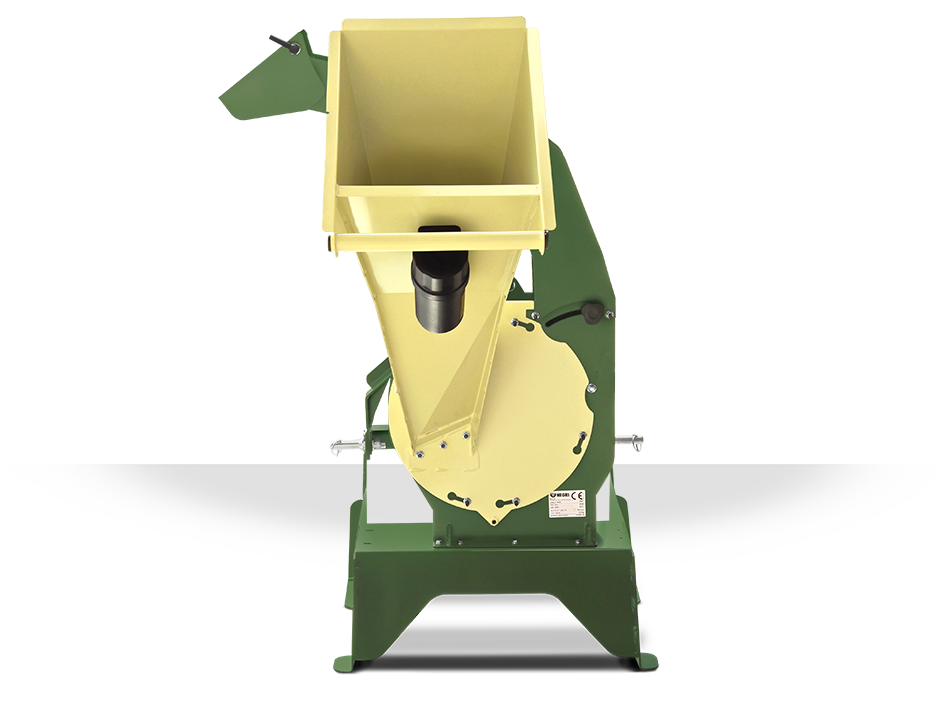

Image R95T
R95T
Image R95T
R95T

Basic equipment

DISC | Blades+Counter-blade

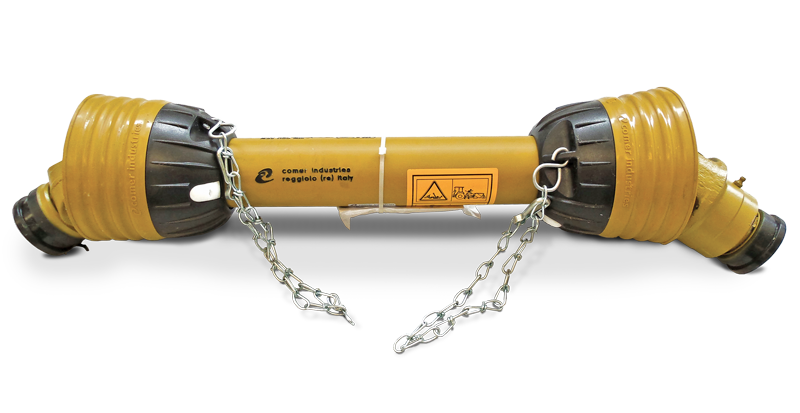

CE marked cardan shaft with freewheel

Sharpenable blade (hardened steel)

Mobile reversible hammers (hardened steel)

Reversible counter-blade (hardened steel)

Mobile refining screen

Ejection pipe with adjustable discharge distance

Hopper with handle for displacement of the machine

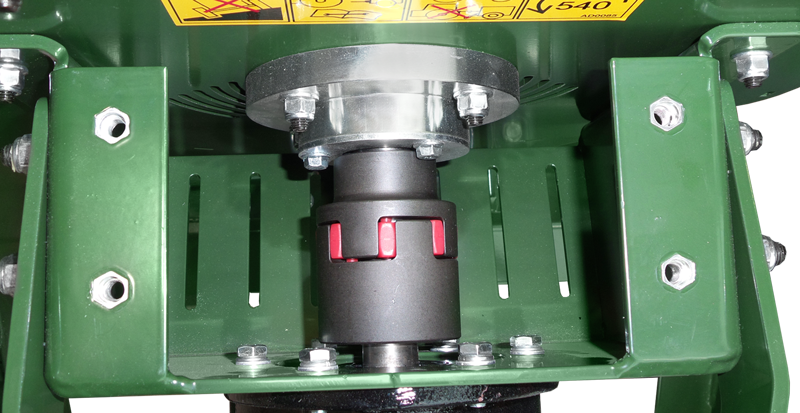

Transmission with gearbox and elastic joint

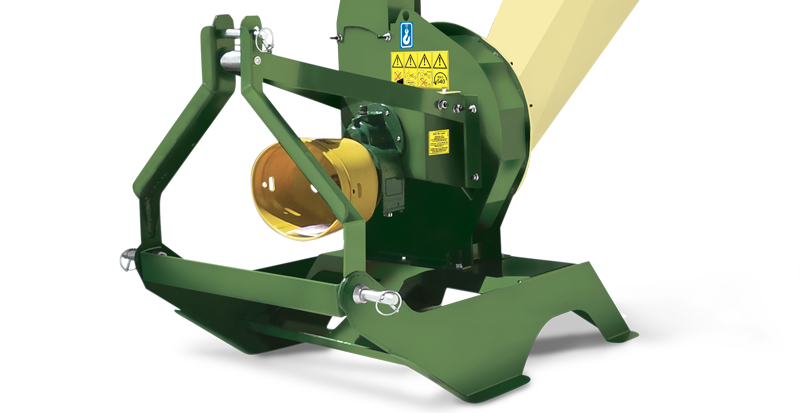

Three-point linkage for tractor - Category 1

Cutting system
Blades (hardened steel) N° 1
Hammers (hardened steel) N° 8
Counter-blade N° 1
Features
Hourly capacity m³/h* 3 - 6
Throat opening mm 130 x 170
To shred - Ø max.* mm 70
Motive power
Power hp/kW ≥ 13 / 9,6
Power source Three-point linkage for tractor / LONGITUDINAL MACHINE
Engine/motor Tractor
Fuel consumption liters/h /
Specifications
Length mm 1685
Width mm 945
Height mm 1370
Discharge height mm 1270
Introduction height mm 1105
Hopper size mm 330 x 360
Weight: NET kg 110
* Input material - Data depending on the kind of material and working conditions.
TERMS
Product origin Made in Italy
Warranty The warranty is the one established by law and it's valid just upon submission of the machine's sales document.
Delivery - Original spare parts Usually available, 45 days max. (from order date)
Identification - SCIP number (link) https://echa.europa.eu/it/scip-database
Instructions -SIP number (PDF)
The products are subject to technical evolution and this website may not be fully updated.
The data in the tables, the photos and pictures have to be considered informative and not binding.
