Aspirafoglie
Aspirano foglie, erba tagliata e
altri rifiuti leggeri dal terreno.

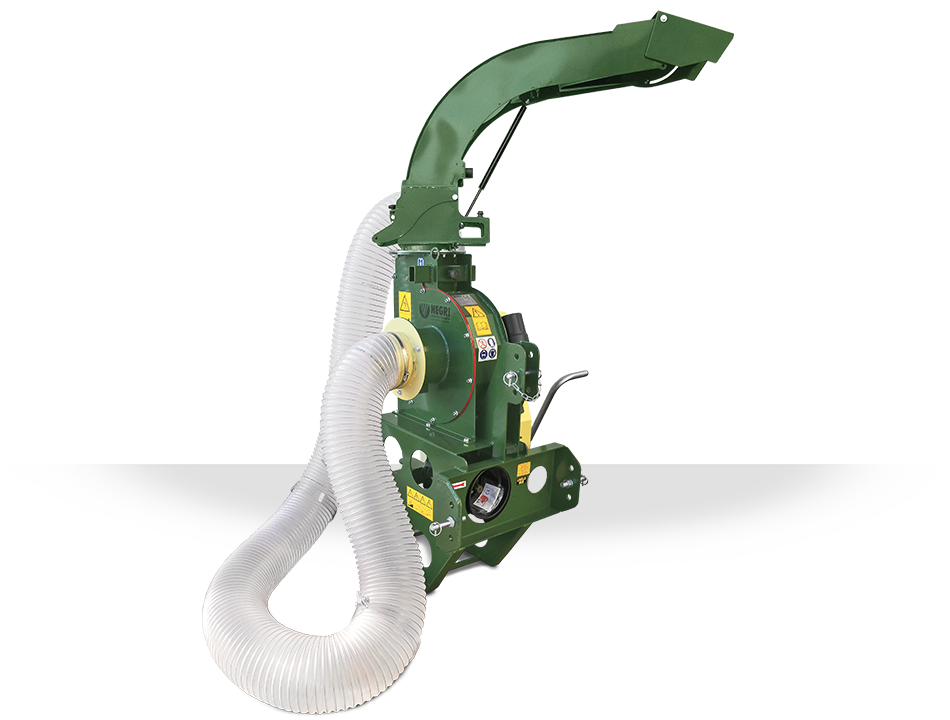

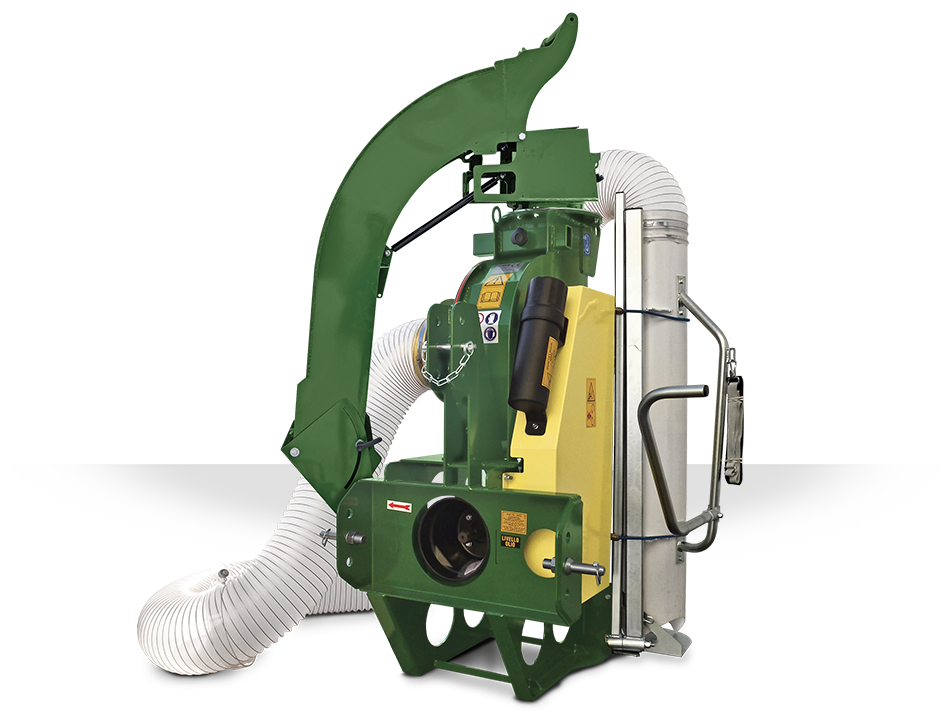

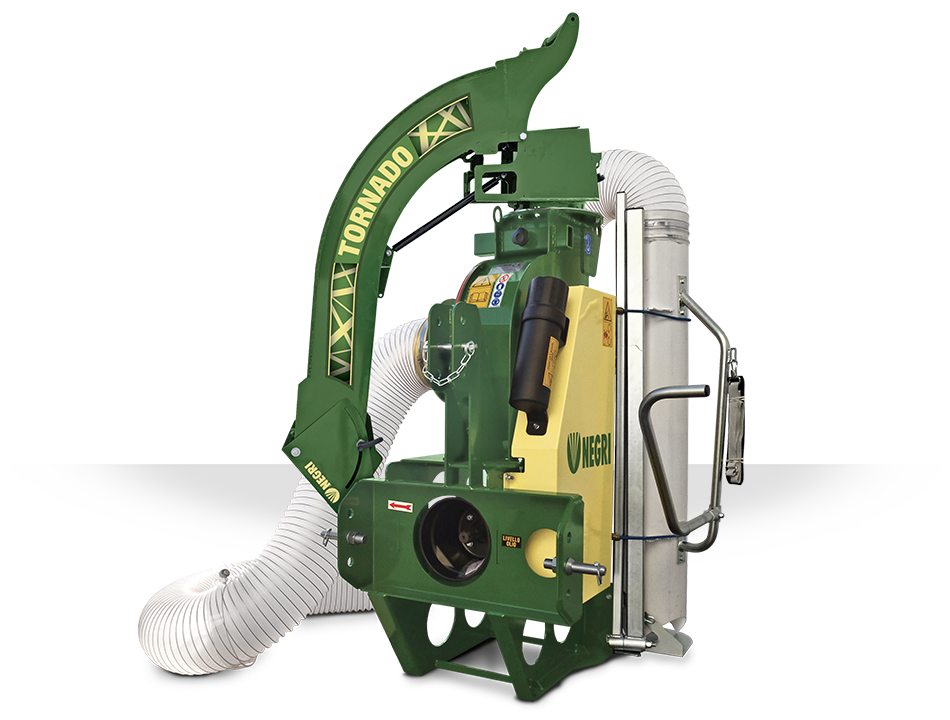

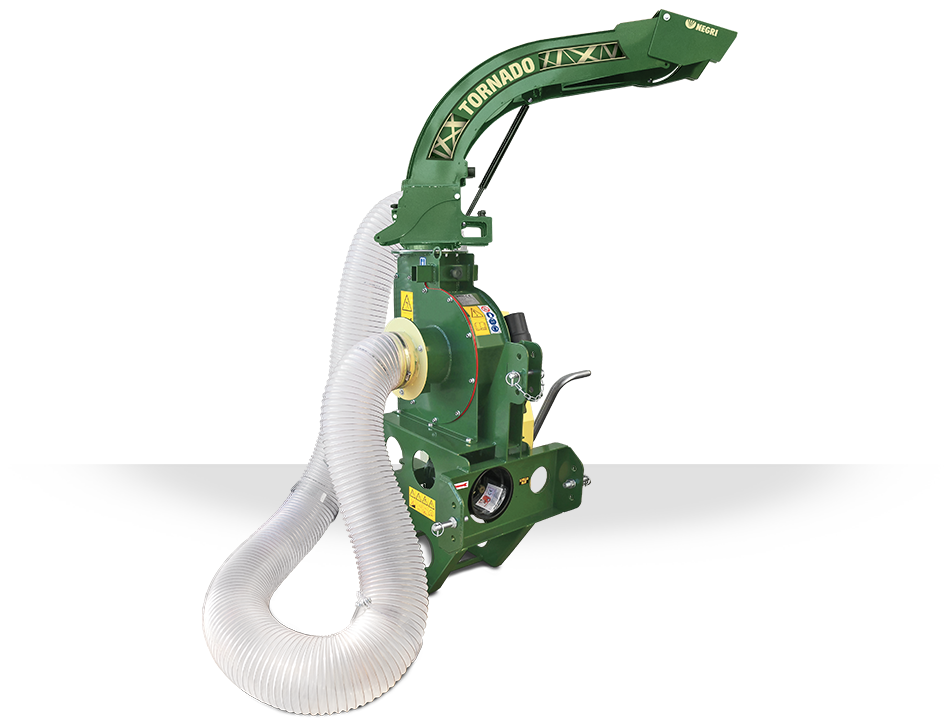

VERSION | TORNADOPTO
Suction power
170
m³/minute*
Basic equipment
IMPELLER | 8 paddles
Flexible suction hose extension (5000 mm)
CE marked cardan shaft with freewheel
Paddles in steel
Suction hose (rigid hose + flexible hose)
Rotary support for flexible hose
Folding, rotary ejection pipe with adjustable discharge distance
Replaceable inner cover

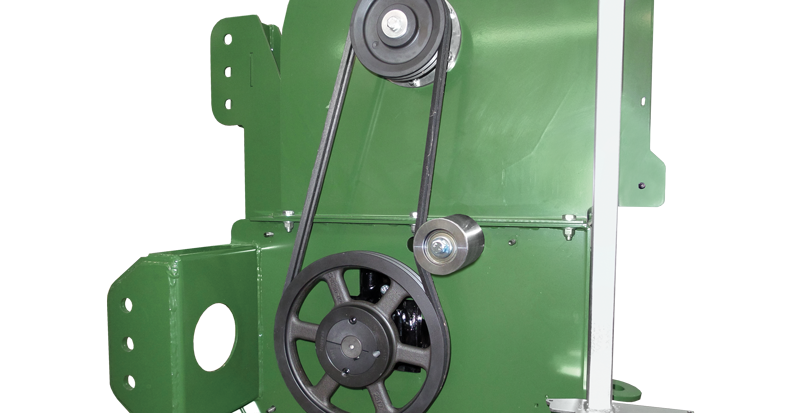

Twin belt transmission with gearbox

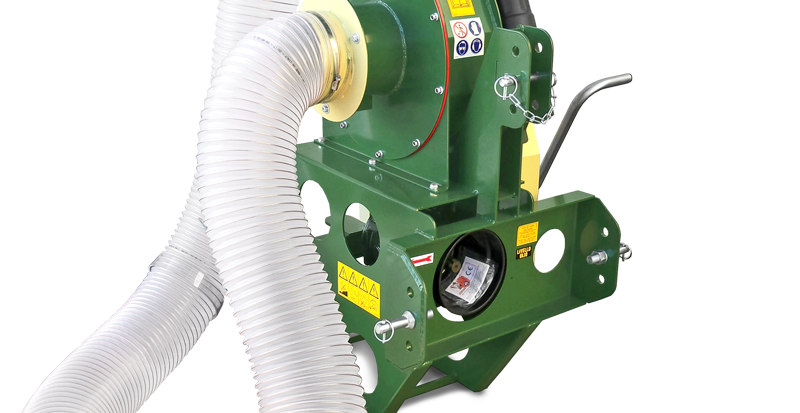

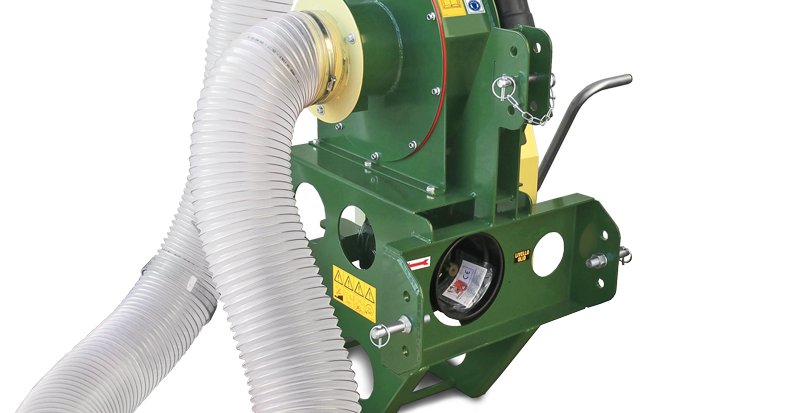

Three-point linkage for tractor - Category 1
| Vacuum system | ||
|---|---|---|
| Impeller - Ø | mm | 390 |
| Paddles (steel) | N° | 8 |
| Suction hose - Ø | mm | 200 |
| Features | ||
| Suction power | m³/minute* | 170 |
| Motive power | ||
| Power | hp/kW | ≥ 13 / 9,6 |
| Power source | Three-point linkage for tractor / LONGITUDINAL MACHINE | |
| Engine/motor | Tractor | |
| Fuel consumption | liters/h | / |
| Specifications | ||
| Length | mm | 1360/1795 |
| Width | mm | 820 |
| Height | mm | 1780/2135 |
| Weight: NET | kg | 240 |
| Suction hose length (rigid hose + flexible hose) | mm | 1000 + 5000 |
* Input material - Data depending on the kind of material and working conditions.
| TERMS | ||
|---|---|---|
| Warranty | The warranty is the one established by law and it's valid just upon submission of the machine's sales document. | |
| Product origin | Made in Italy | |
| Delivery - Original spare parts | Usually available, 45 days max. (from order date) | |
| Identification - SCIP number (link) | https://echa.europa.eu/it/scip-database Instructions -SIP number (PDF) |
|
The products are subject to technical evolution and this website may not be fully updated.
The data in the tables, the photos and pictures have to be considered informative and not binding.
The data in the tables, the photos and pictures have to be considered informative and not binding.
