Trituratori - Cippatori

Sminuzzano sia piccole che grandi potature di aree verdi,
diminuendone il volume per facilitarne il trasporto e ottenere ottimo compost o cippato.

Airing Machines

They remove the thatch from the lawn and thin out the grass roots.

Shredders - Chippers

Leaf vacuums

They suck leaves and light waste from the ground.

VERSION | R185TRIN

Hourly capacity

6 - 7

m³/h*

Throat opening

160 x 90 (RI) 160 x 150

mm

90

Ø max.* mm

2

Blades

10

Hammers

1

Counter-blade

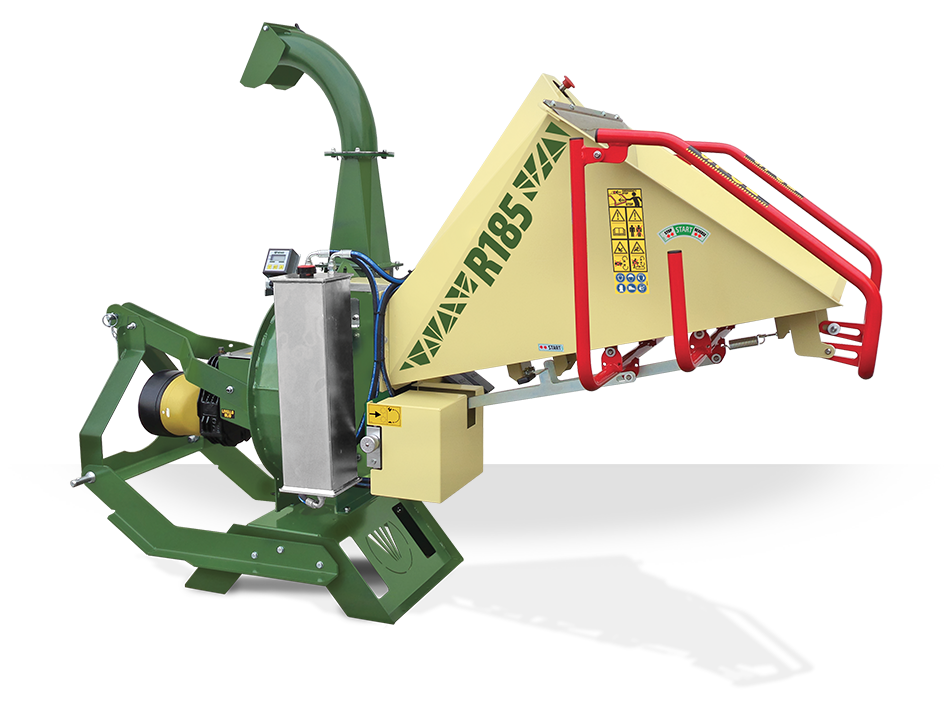

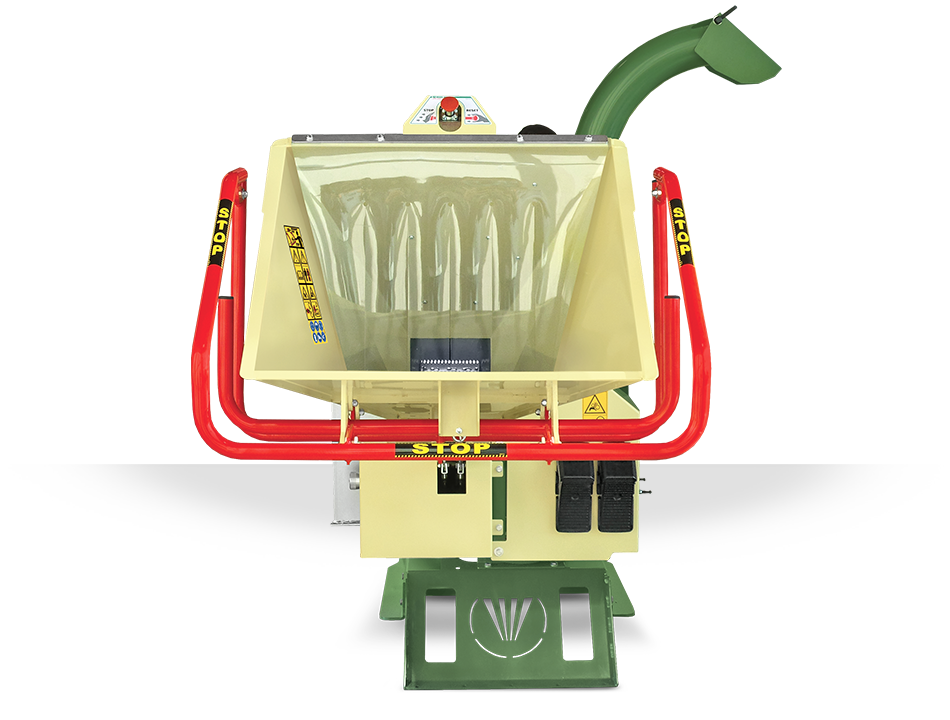

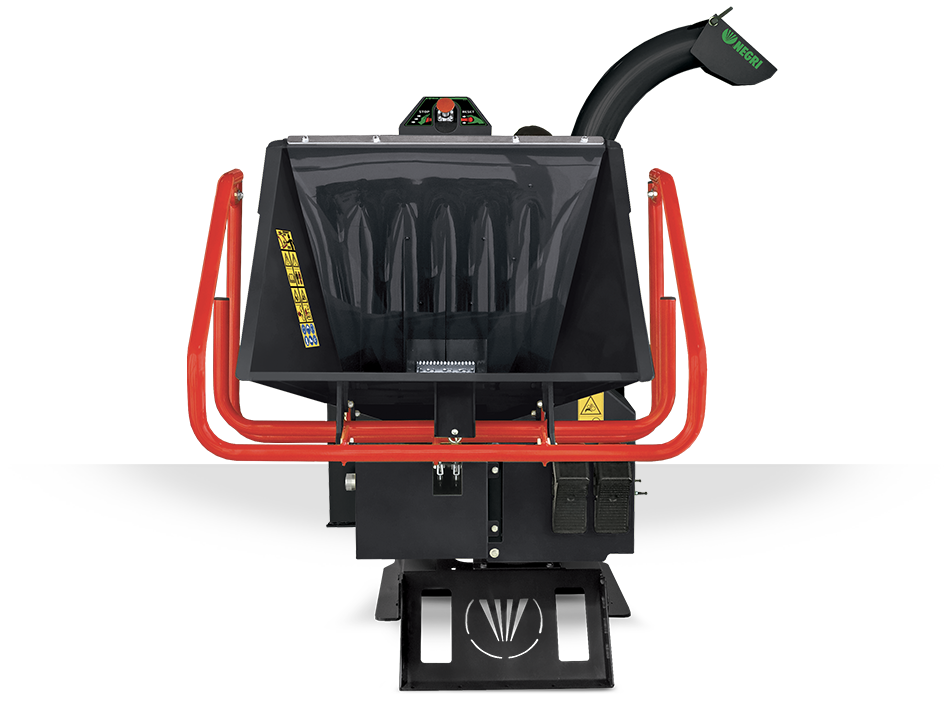

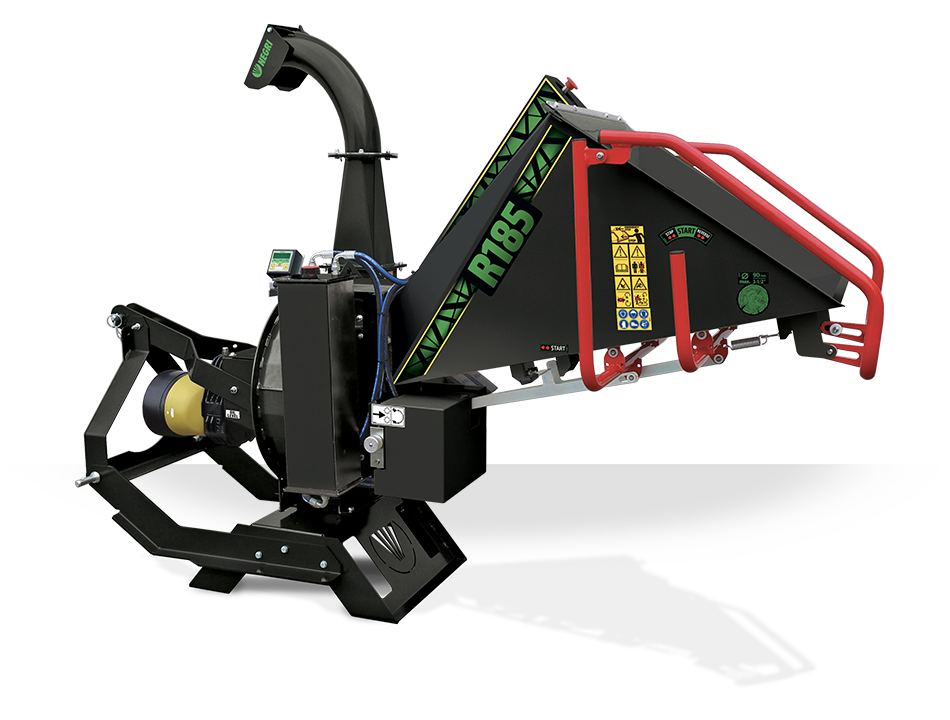

Image R185TRIN
R185TRIN
Image R185TRIN
R185TRIN

Basic equipment

Ejection pipe extension (400 mm)

DISC | Blades+Counter-blade

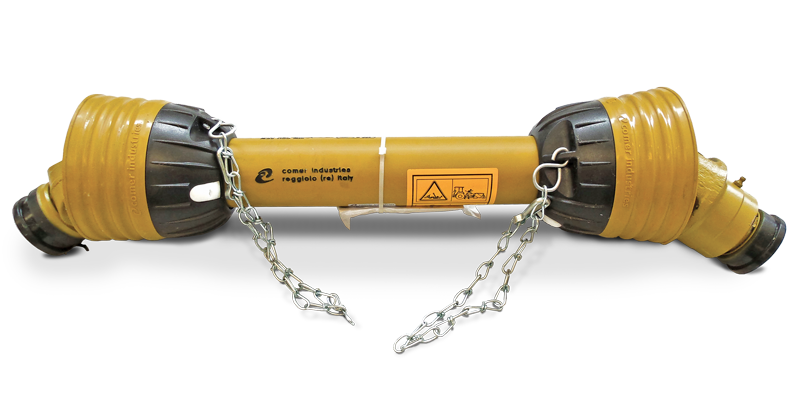

CE marked cardan shaft with freewheel

Sharpenable blades (hardened steel)

Mobile reversible hammers (hardened steel)

Adjustable counter-blade

Mobile refining screen

Rotary ejection pipe with adjustable discharge distance

Lubrication system for bearings

Hydraulic feeding roller with adjustable speed and rotation direction

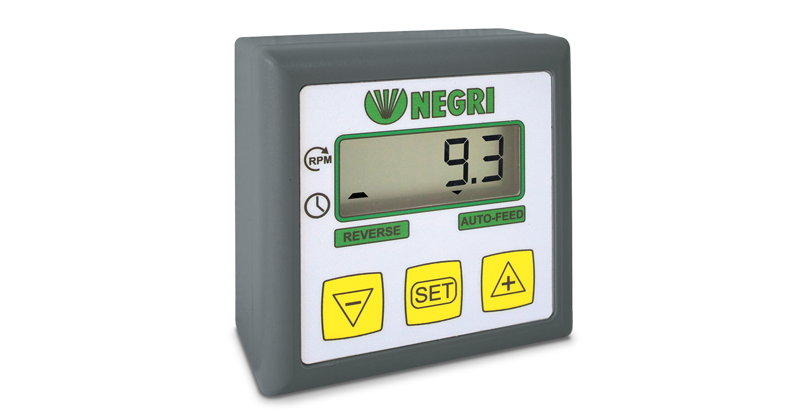

Nostress control

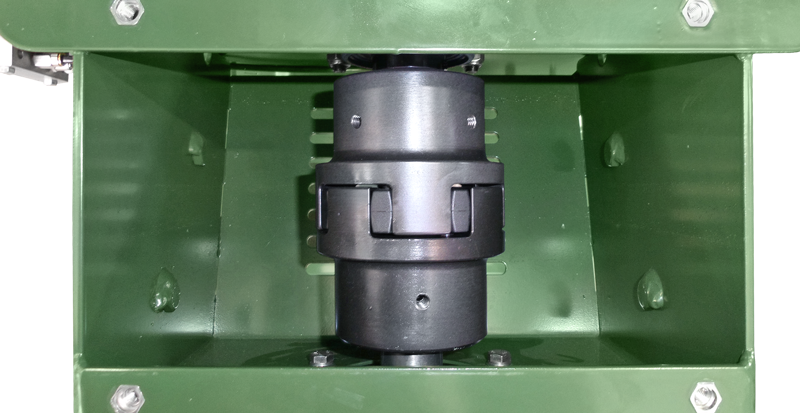

Transmission with gearbox and elastic joint

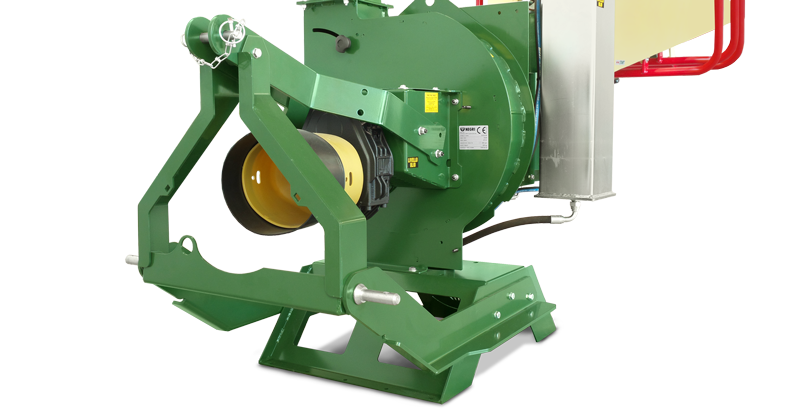

Three-point linkage for tractor - Category 1

Cutting system
Blades (hardened steel) N° 2
Hammers (hardened steel) N° 10
Counter-blade N° 1
Features
Hourly capacity m³/h* 6 - 7
Throat opening mm 160 x 90
To shred - Ø max.* mm 90
Motive power
Power hp/kW ≥ 15 / 11
Power source Three-point linkage for tractor / LONGITUDINAL MACHINE
Engine/motor Tractor
Fuel consumption liters/h /
Specifications
Length mm 2350
Width mm 1000
Height mm 1750
Discharge height mm 1750
Introduction height mm 1000
Hopper size mm 700 x 725
Weight: NET kg 300
* Input material - Data depending on the kind of material and working conditions.
TERMS
Product origin Made in Italy
Warranty The warranty is the one established by law and it's valid just upon submission of the machine's sales document.
Delivery - Original spare parts Usually available, 45 days max. (from order date)
Identification - SCIP number (link) https://echa.europa.eu/it/scip-database
Instructions -SIP number (PDF)
The products are subject to technical evolution and this website may not be fully updated.
The data in the tables, the photos and pictures have to be considered informative and not binding.
