Trituratori - Cippatori

Sminuzzano sia piccole che grandi potature di aree verdi,
diminuendone il volume per facilitarne il trasporto e ottenere ottimo compost o cippato.

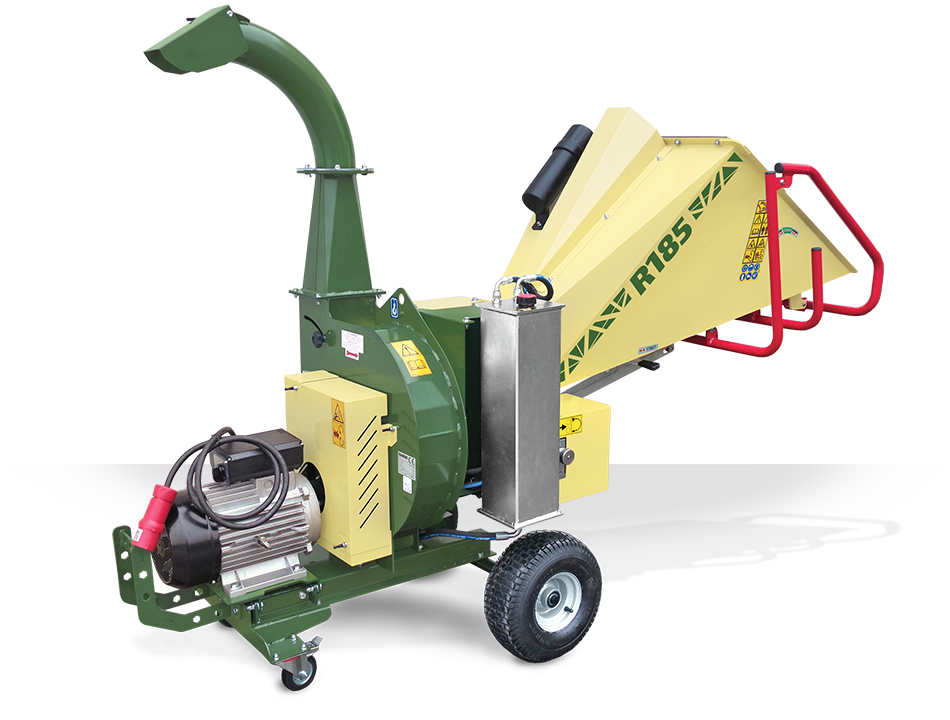

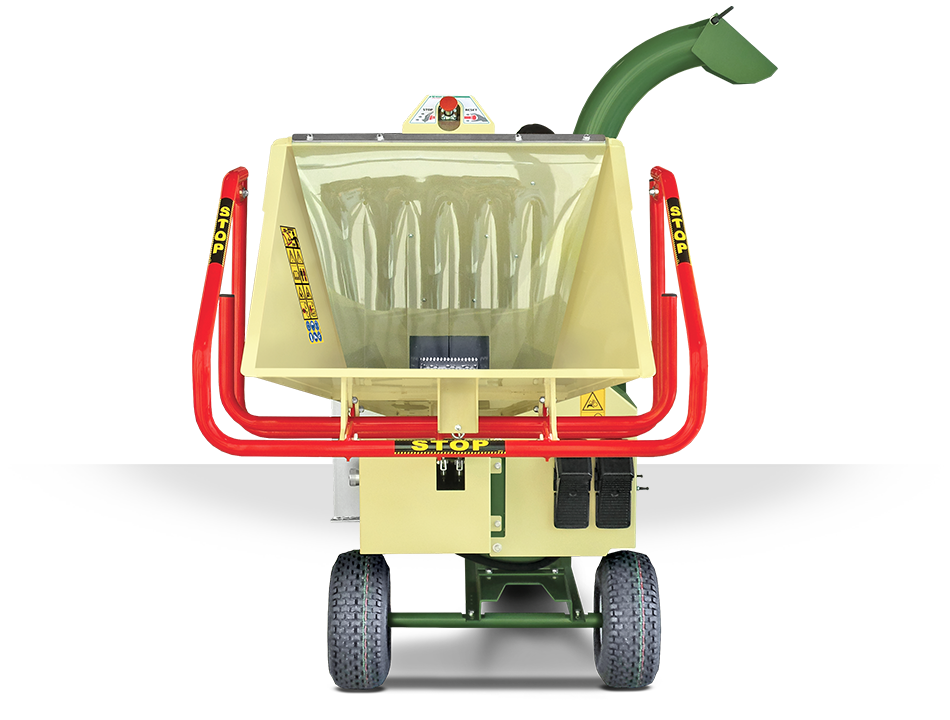

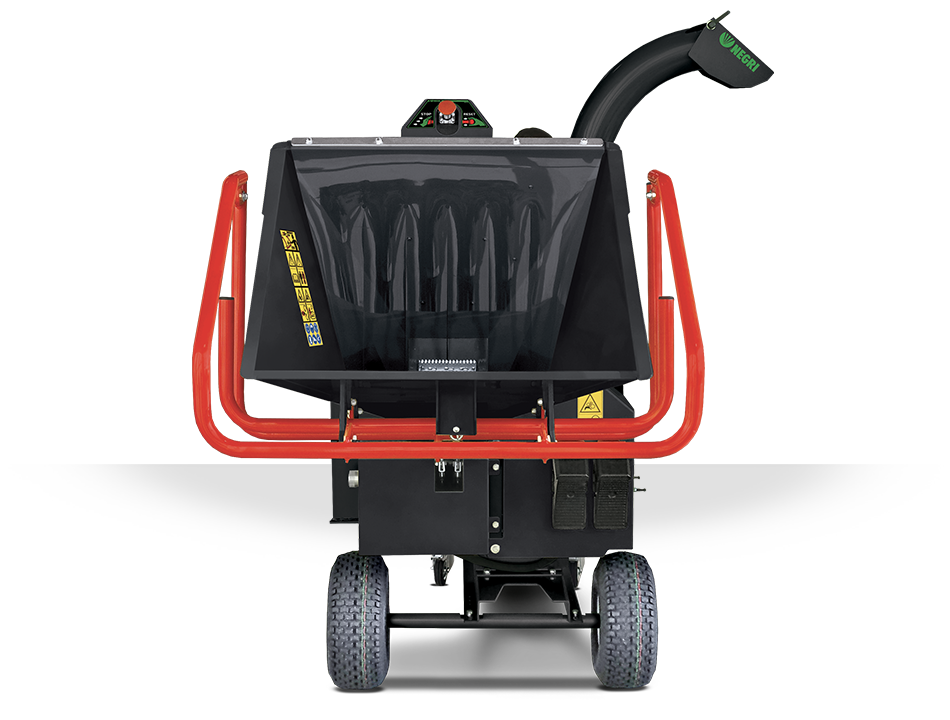

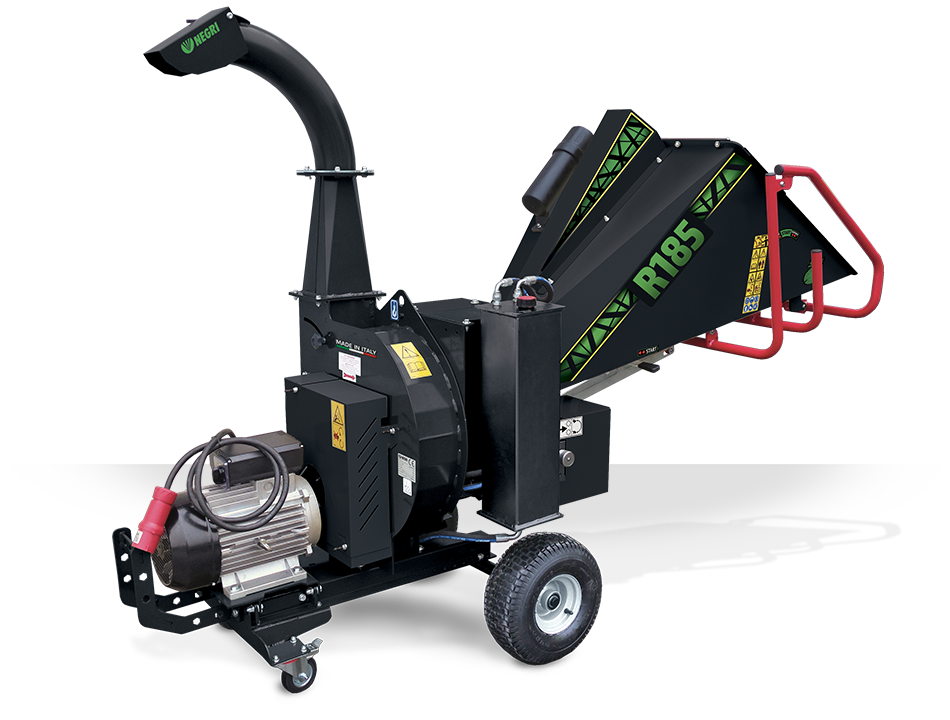

VERSION | R185EHP15RI

Hourly capacity

6 - 7

m³/h*

Throat opening

160 x 90

mm

90

Ø max.* mm

2

Blades

10

Hammers

1

Counter-blade

Basic equipment

DISC | Blades+Counter-blade

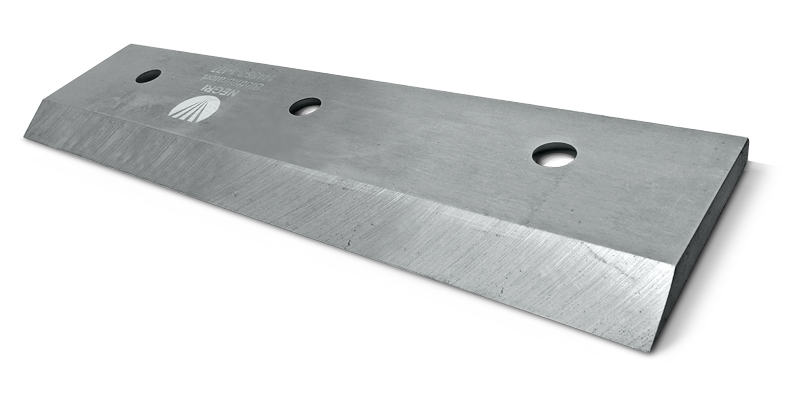

Sharpenable blades (hardened steel)

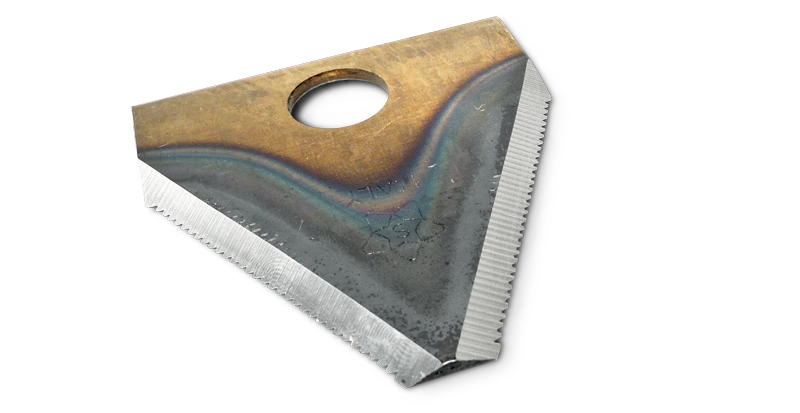

Mobile reversible hammers (hardened steel)

Adjustable counter-blade

Mobile refining screen

Rotary ejection pipe with adjustable discharge distance

Lubrication system for bearings

Hydraulic feeding roller with adjustable speed and rotation direction

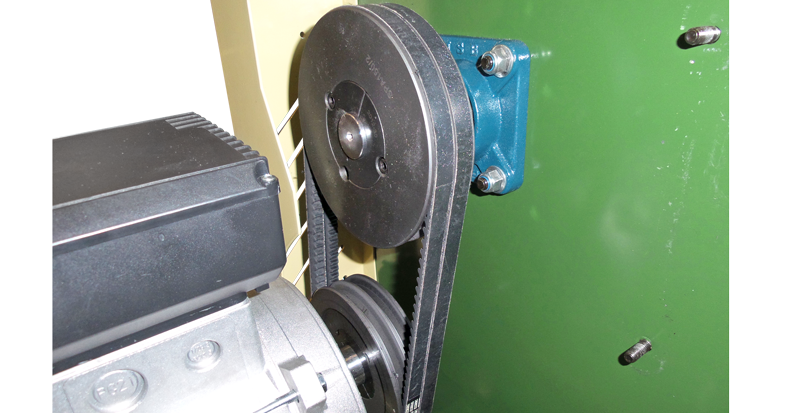

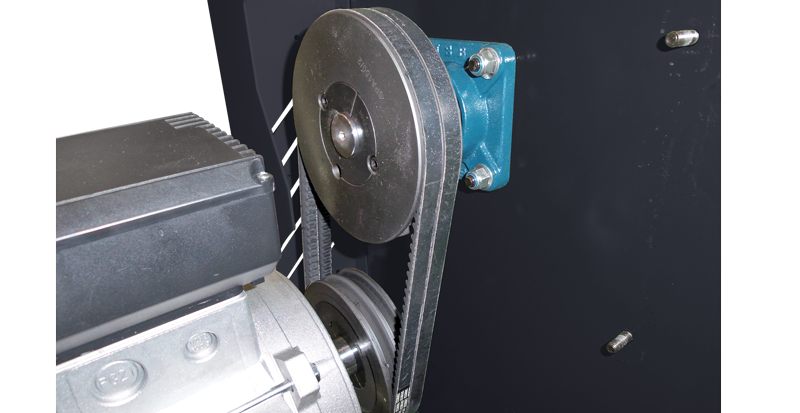

Belt transmission

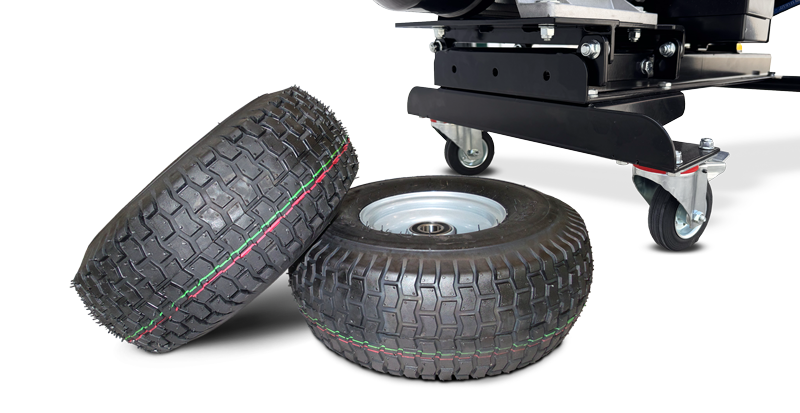

2 pneumatic wheels + 2 swivel wheels

380 V - 50 Hz

Ejection pipe extension (400 mm)

Cutting system
Blades (hardened steel) 2
Hammers (hardened steel) 10
Counter-blade 1
Features
Hourly capacity m³/h* 6 - 7
Throat opening mm 160 x 90
To shred - Ø max.* mm 90

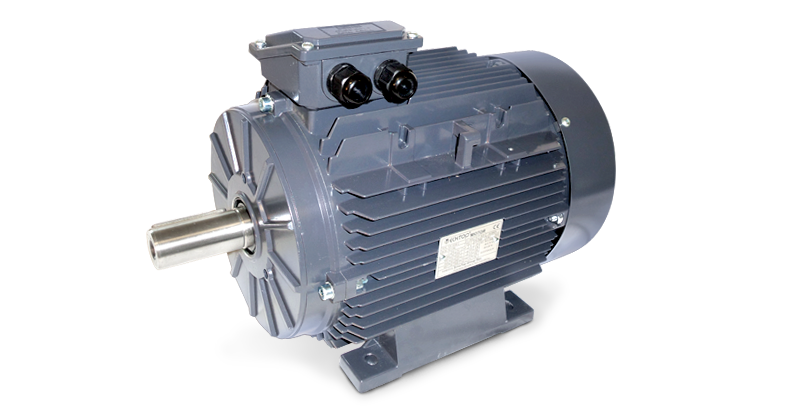

Motive power
Power hp/kW 15 / 11
Power source Electric
Engine/motor 380 V - 50 Hz
Fuel consumption liters/h /
Specifications
Length mm 2300
Width mm 1000
Height mm 1750
Discharge height mm 1750
Introduction height mm 1000
Hopper size mm 700 x 725
Weight: NET kg 340
* Input material - Data depending on the kind of material and working conditions.
TERMS
Product origin Made in Italy
Warranty 2 years for EU countries / 1 year for non-EU countries - from invoice date
Delivery - Original spare parts Usually available, 45 days max. (from order date)
Identification - SCIP number (link) https://echa.europa.eu/it/scip-database
Instructions -SIP number (PDF)
The products are subject to technical evolution and this website may not be fully updated.
The data in the tables, the photos and pictures have to be considered informative and not binding.
