Shredders - Chippers
They shred both small and large amounts of vegetable waste from green areas,
thus reducing the waste volume to transport it more easily and to obtain excellent compost or wood chips.

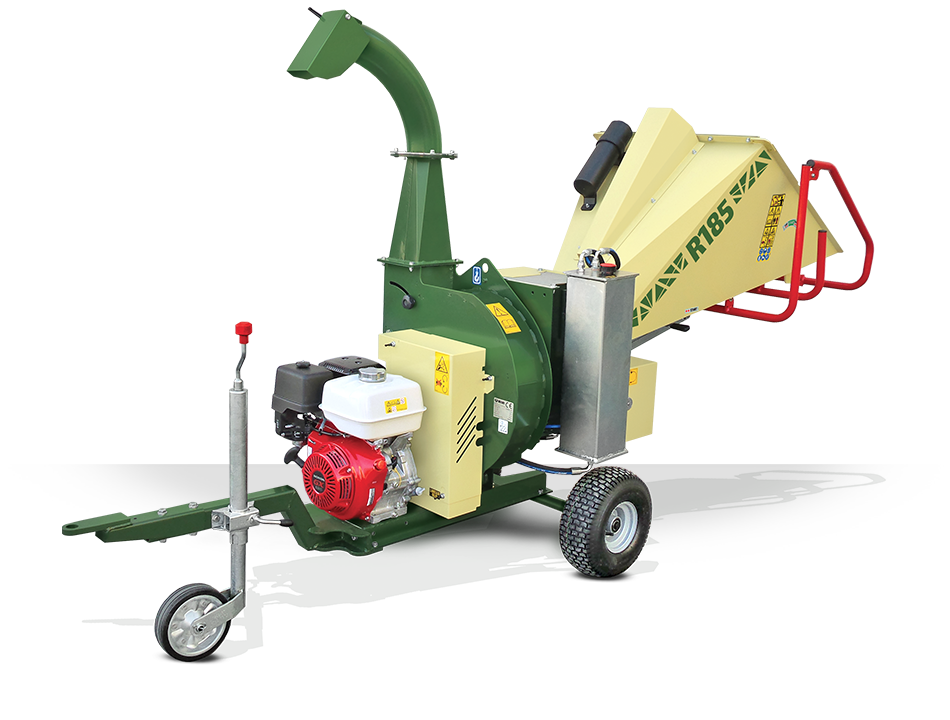

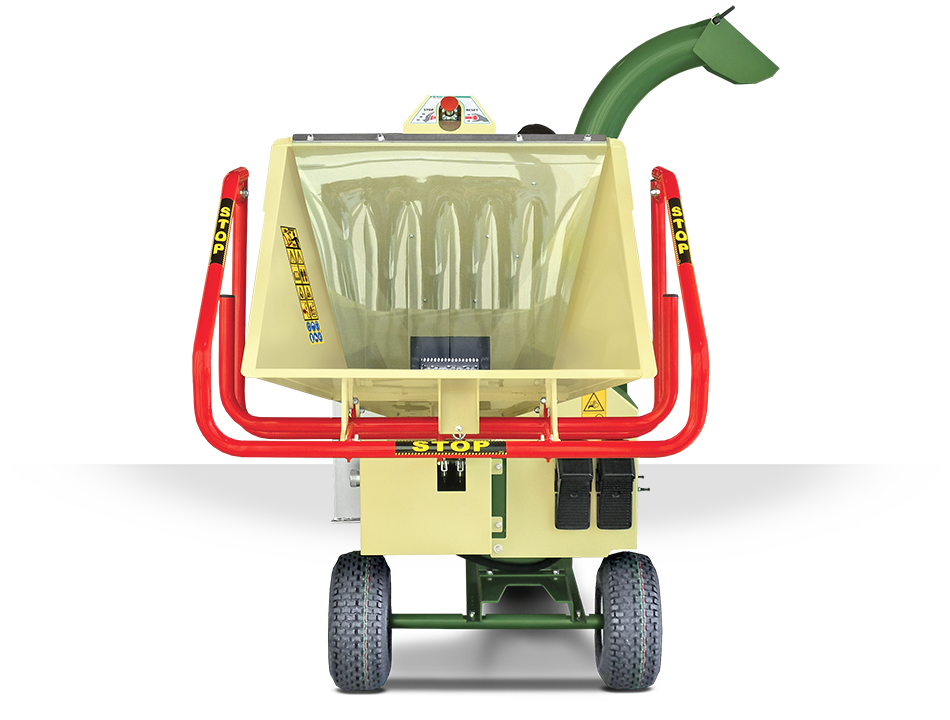

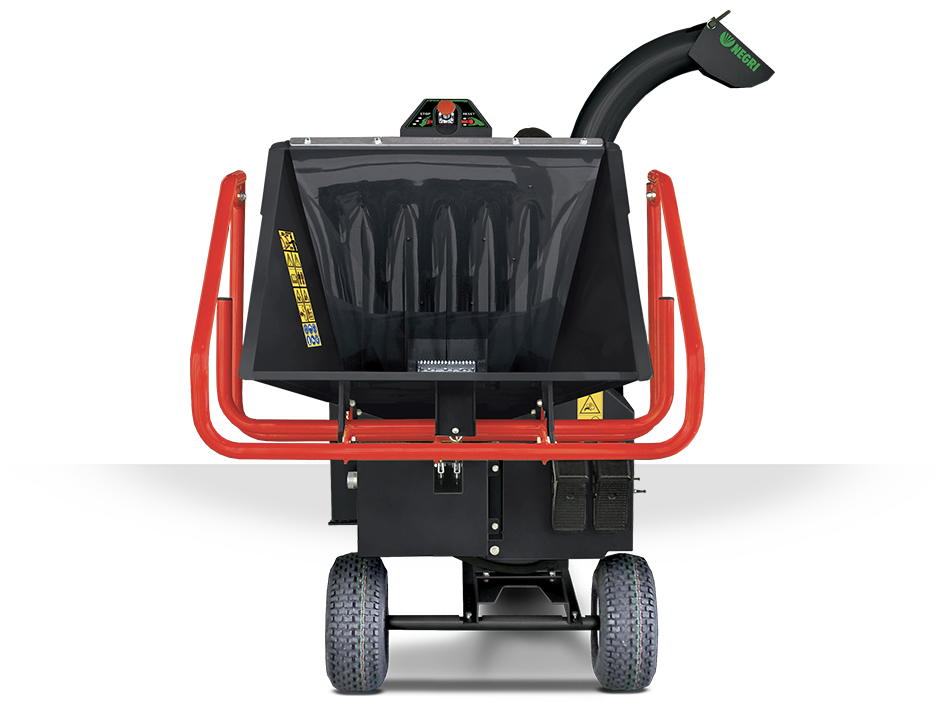

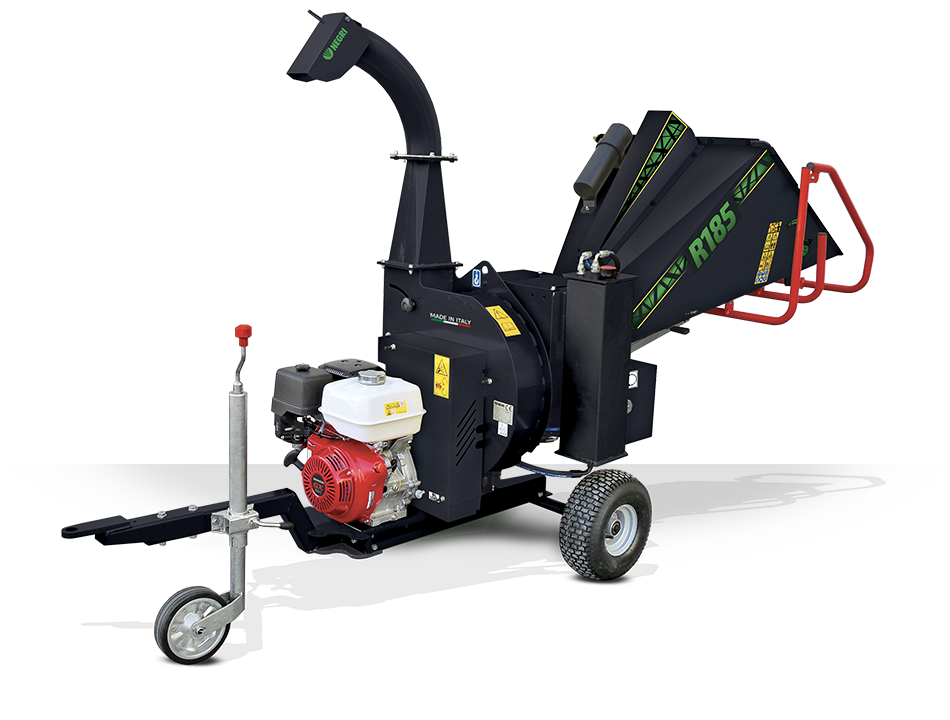

VERSION | R185BHHP13RI
Hourly capacity
6 - 7
m³/h*
1
Counter-blade
Basic equipment
DISC | Blades+Counter-blade
Sharpenable blades (hardened steel)
Mobile reversible hammers (hardened steel)
Adjustable counter-blade
Mobile refining screen
Rotary ejection pipe with adjustable discharge distance
Lubrication system for bearings
Hydraulic feeding roller with adjustable speed and rotation direction

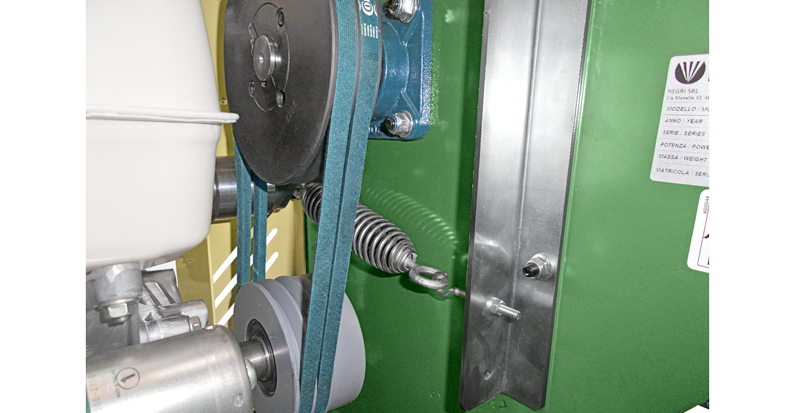

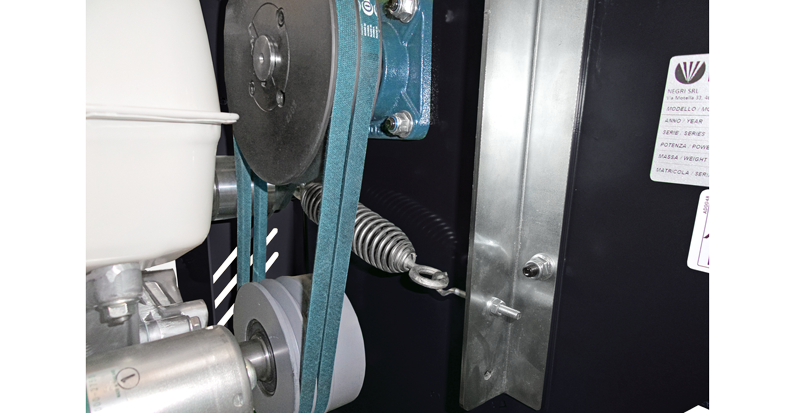

Belt transmission with clutch

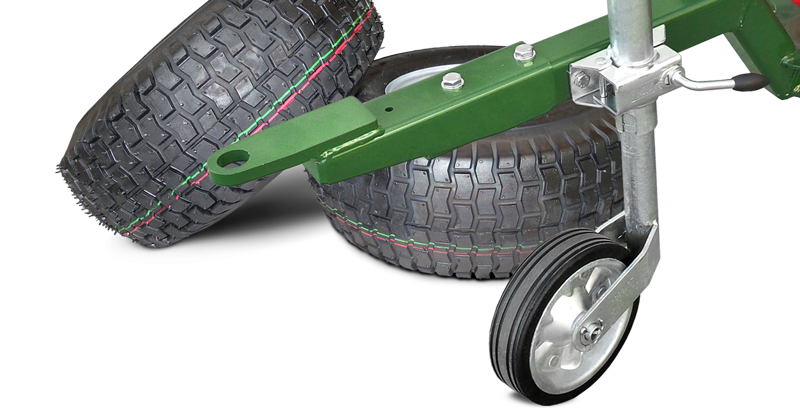

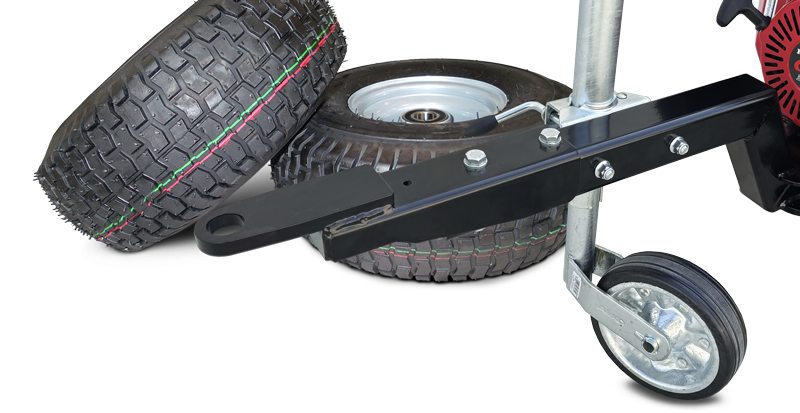

2 pneumatic wheels + drawbar with jockey wheel
HONDA GX390
Ejection pipe extension (400 mm)

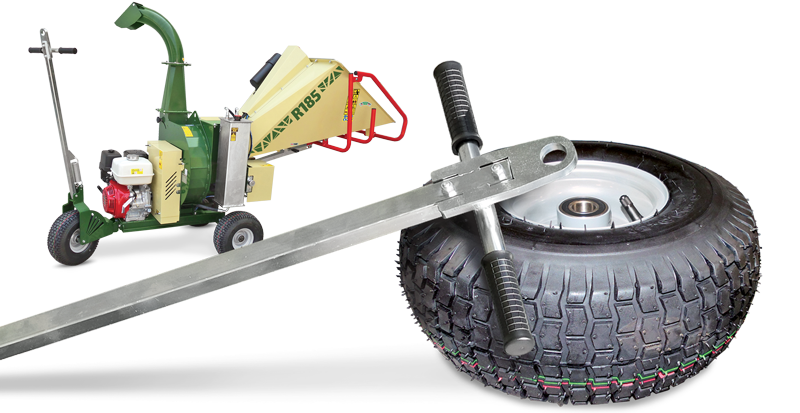

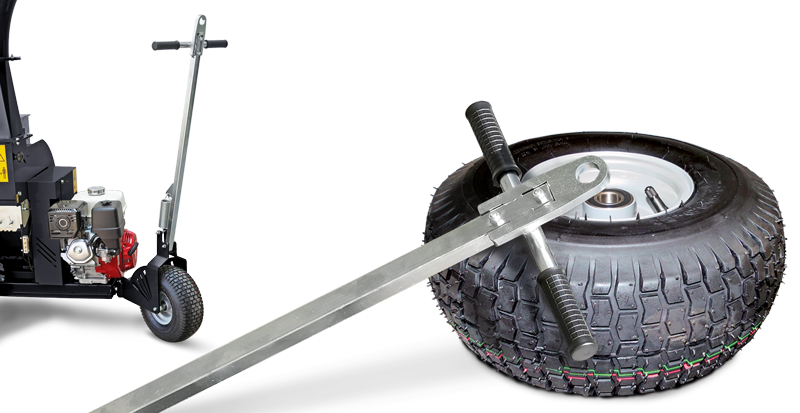

Third pneumatic wheel kit
| Cutting system | ||
|---|---|---|
| Blades (hardened steel) | N° | 2 |
| Hammers (hardened steel) | N° | 10 |
| Counter-blade | N° | 1 |
| Features | ||
| Hourly capacity | m³/h* | 6 - 7 |
| Throat opening | mm | 160 x 90 |
| To shred - Ø max.* | mm | 90 |
| Motive power | ||
| Power | hp/kW | 13 / 9,6 |
| Power source | Petrol | |
| Engine/motor | HONDA GX390 | |
| Fuel consumption | liters/h | 2,8 |
| Specifications | ||
| Length | mm | 2900 |
| Width | mm | 1000 |
| Height | mm | 1750 |
| Discharge height | mm | 1750 |
| Introduction height | mm | 1000 |
| Hopper size | mm | 700 x 725 |
| Weight: NET | kg | 340 |
* Input material - Data depending on the kind of material and working conditions.
| TERMS | ||
|---|---|---|
| Product origin | Made in Italy | |
| Warranty | 2 years for EU countries / 1 year for non-EU countries - from invoice date | |
| Delivery - Original spare parts | Usually available, 45 days max. (from order date) | |
| Identification - SCIP number (link) | https://echa.europa.eu/it/scip-database Instructions -SIP number (PDF) |
|
The products are subject to technical evolution and this website may not be fully updated.
The data in the tables, the photos and pictures have to be considered informative and not binding.
The data in the tables, the photos and pictures have to be considered informative and not binding.
