Shredders - Chippers

They shred both small and large amounts of vegetable waste from green areas,
thus reducing the waste volume to transport it more easily and to obtain excellent compost or wood chips.

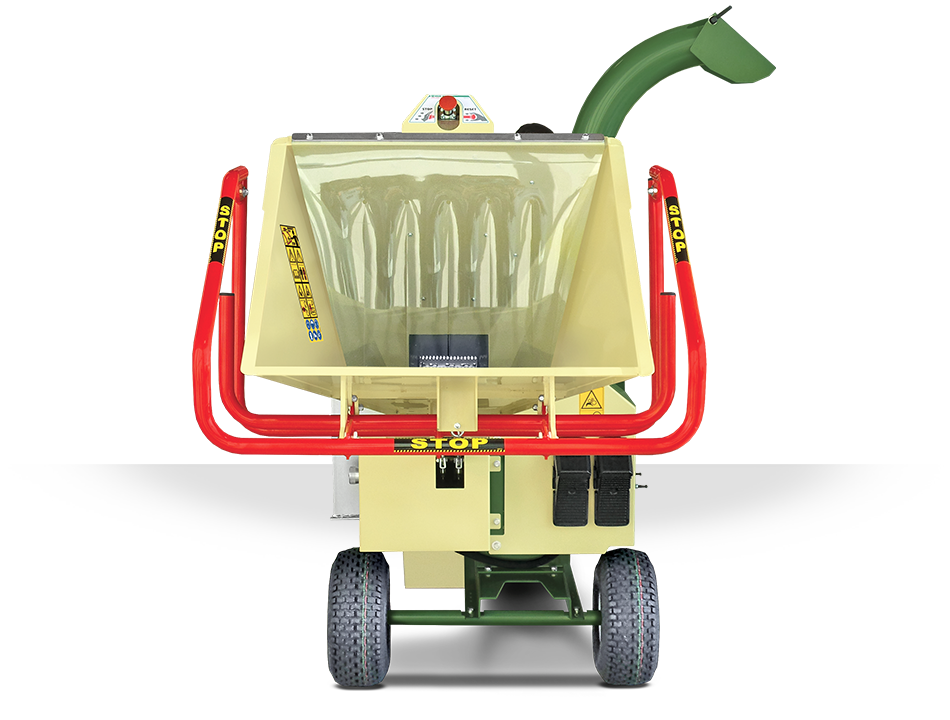

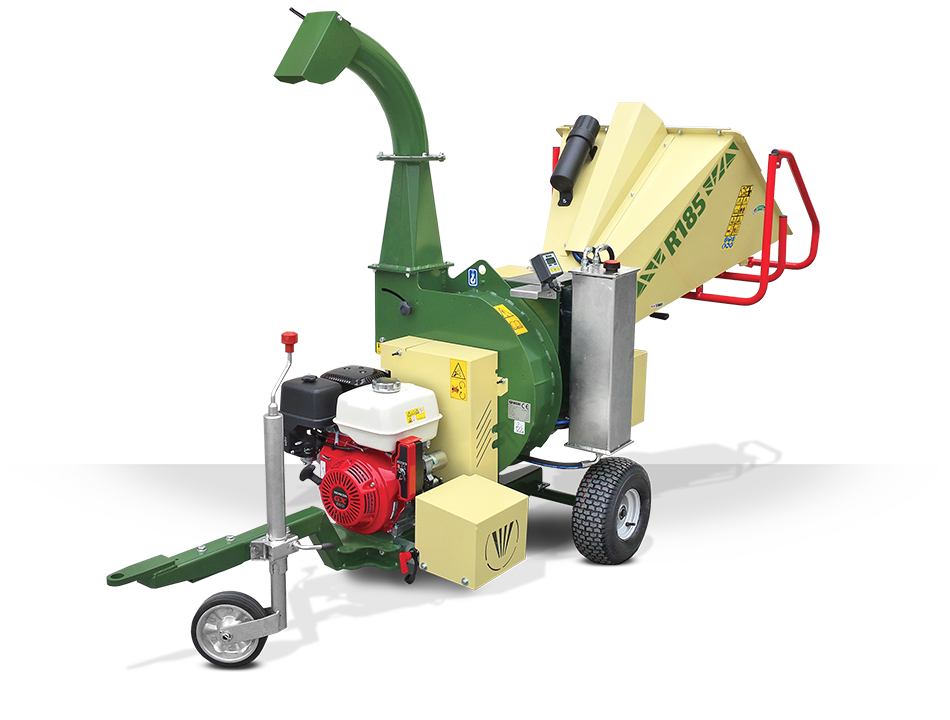

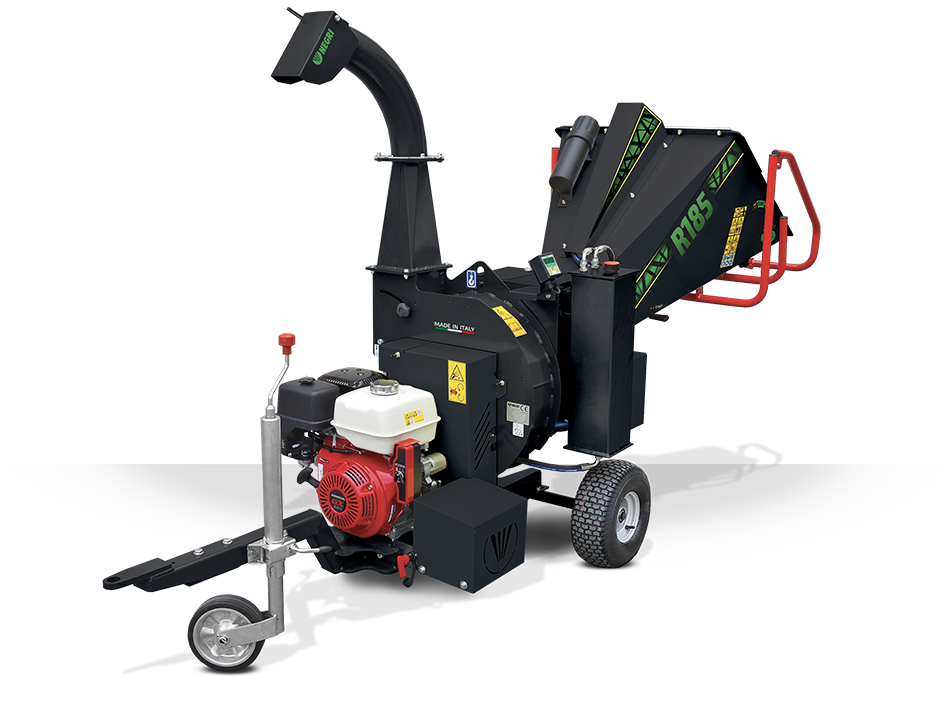

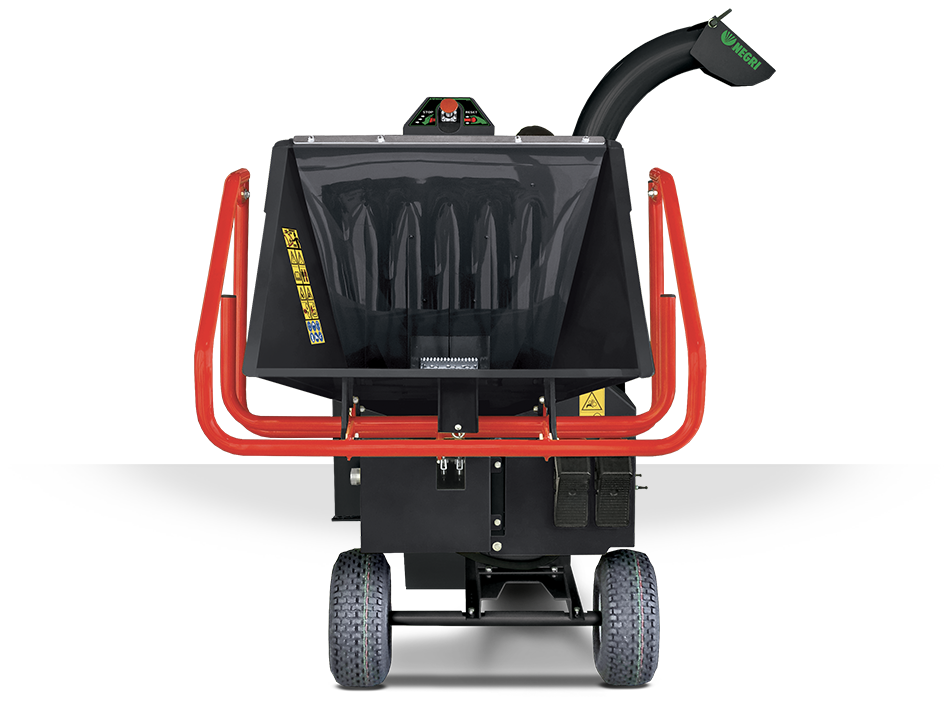

VERSION | R185BHHP13AERIN

Hourly capacity

6 - 7

m³/h*

Throat opening

160 x 90 (RI) 160 x 150

mm

90

Ø max.* mm

2

Blades

10

Hammers

1

Counter-blade

Basic equipment

DISC | Blades+Counter-blade

Sharpenable blades (hardened steel)

Mobile reversible hammers (hardened steel)

Adjustable counter-blade

Mobile refining screen

Rotary ejection pipe with adjustable discharge distance

Lubrication system for bearings

Hydraulic feeding roller with adjustable speed and rotation direction

Nostress control

Belt transmission with clutch

2 pneumatic wheels + drawbar with jockey wheel

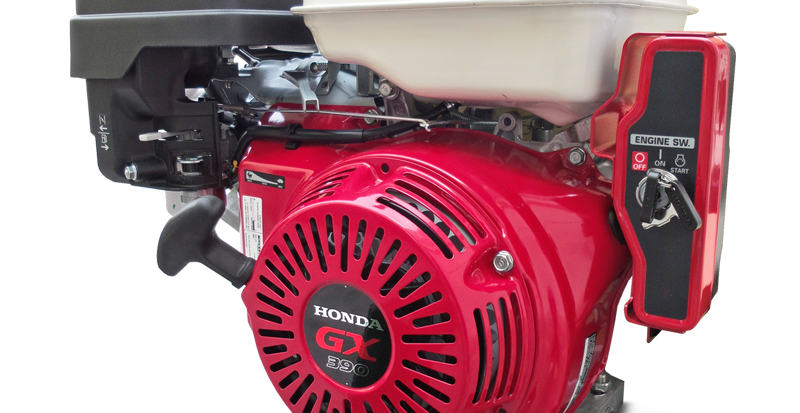

HONDA GX390

Electric start

Ejection pipe extension (400 mm)

Third pneumatic wheel kit

Cutting system
Blades (hardened steel) 2
Hammers (hardened steel) 10
Counter-blade 1
Features
Hourly capacity m³/h* 6 - 7
Throat opening mm 160 x 90
To shred - Ø max.* mm 90
Motive power
Power hp/kW 13 / 9,6
Power source Petrol
Engine/motor HONDA GX390
Fuel consumption liters/h 2,8
Specifications
Length mm 2900
Width mm 1000
Height mm 1750
Discharge height mm 1750
Introduction height mm 1000
Hopper size mm 700 x 725
Weight: NET kg 340
* Input material - Data depending on the kind of material and working conditions.
TERMS
Product origin Made in Italy
Warranty 2 years for EU countries / 1 year for non-EU countries - from invoice date
Delivery - Original spare parts Usually available, 45 days max. (from order date)
Identification - SCIP number (link) https://echa.europa.eu/it/scip-database
Instructions -SIP number (PDF)
The products are subject to technical evolution and this website may not be fully updated.
The data in the tables, the photos and pictures have to be considered informative and not binding.
