Shredders - Chippers

They shred both small and large amounts of vegetable waste from green areas,
thus reducing the waste volume to transport it more easily and to obtain excellent compost or wood chips.

Airing Machines

They remove the thatch from the lawn and thin out the grass roots.

Shredders - Chippers

Leaf vacuums

They suck leaves and light waste from the ground.

VERSION | R185BHHP13

Hourly capacity

6 - 7

m³/h*

Throat opening

160 x 90 (RI) 160 x 150

mm

90

Ø max.* mm

2

Blades

10

Hammers

1

Counter-blade

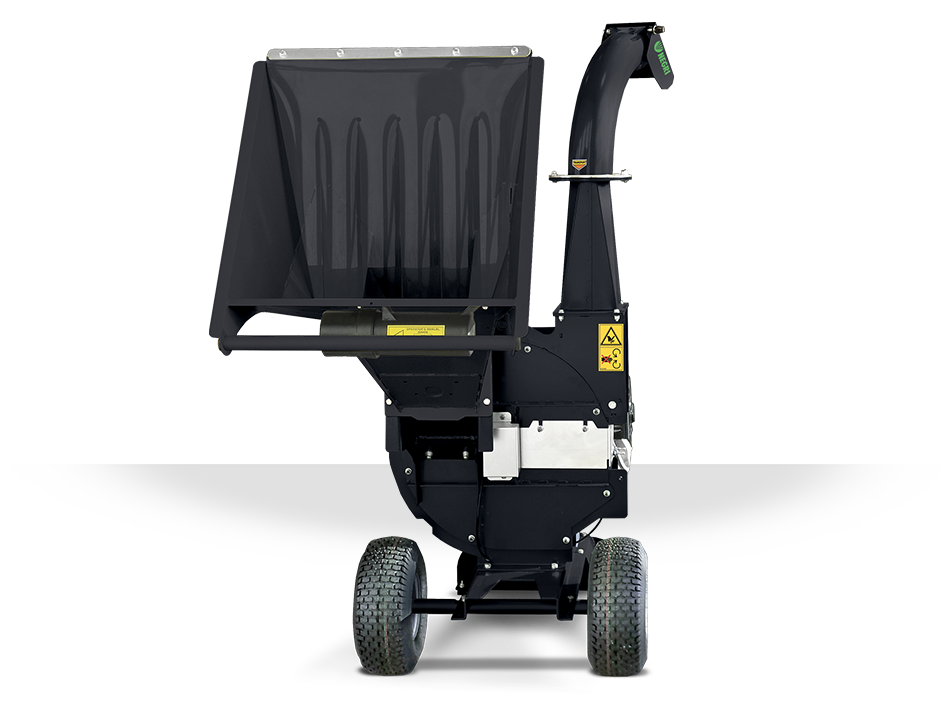

Image R185BHHP13

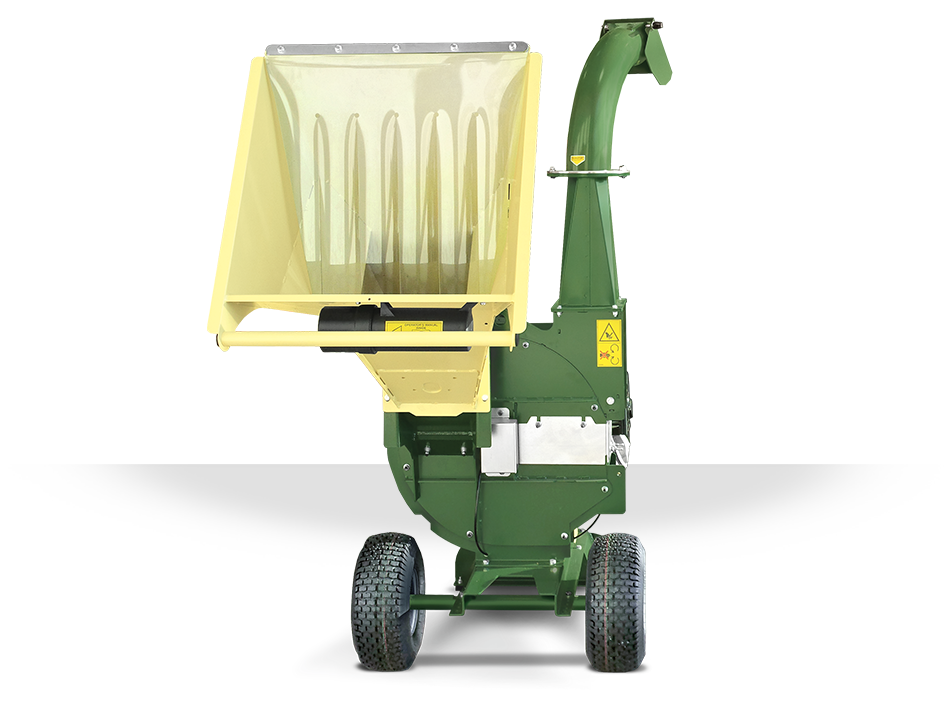

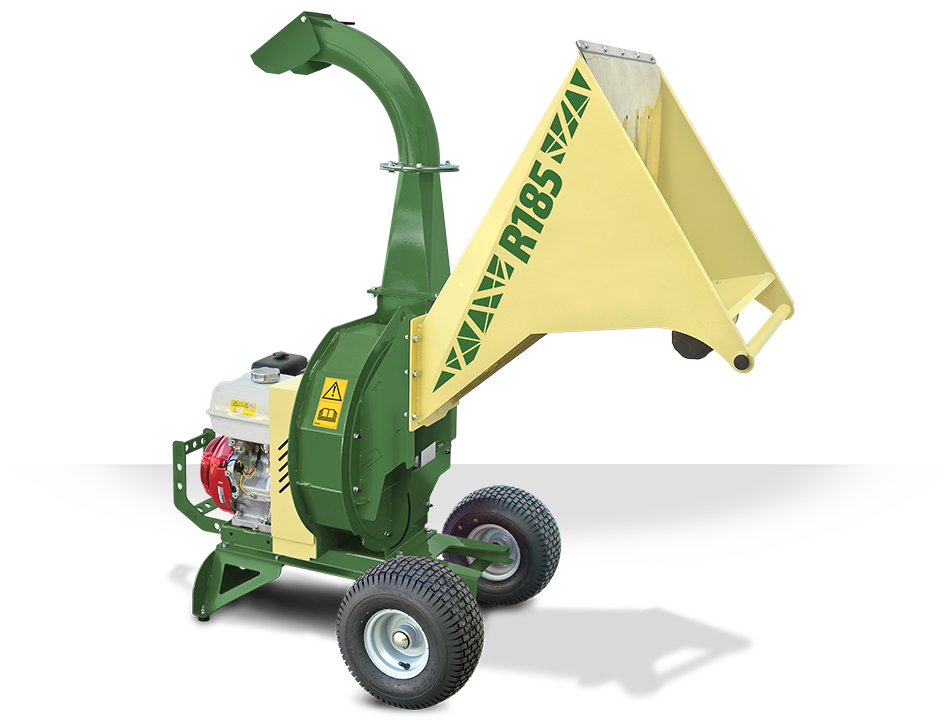

R185BHHP13

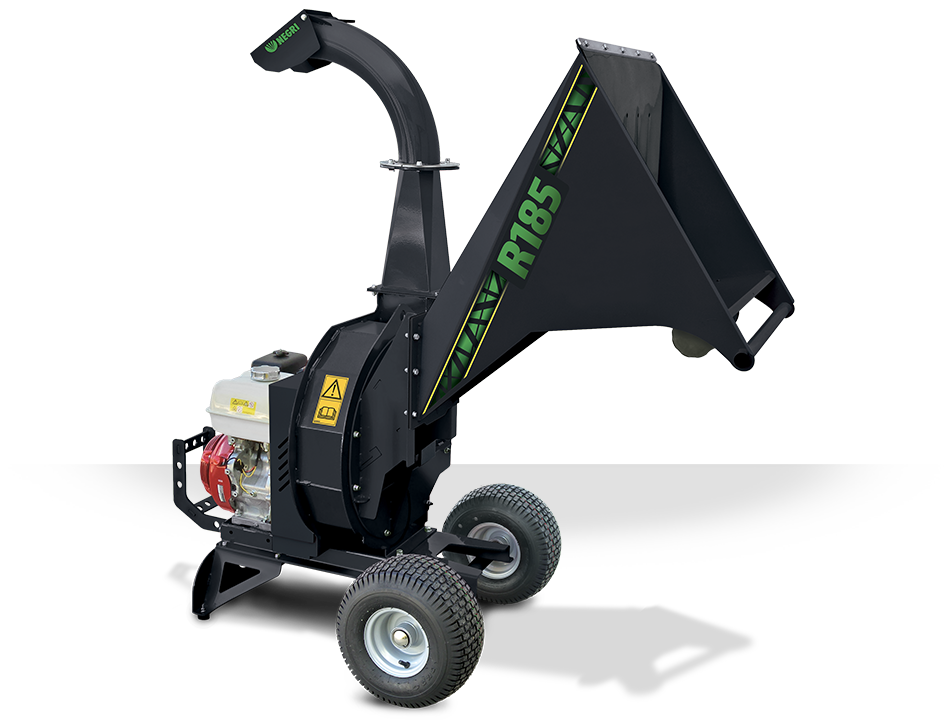

Image R185BHHP13
R185BHHP13

Basic equipment

DISC | Blades+Counter-blade

Sharpenable blades (hardened steel)

Mobile reversible hammers (hardened steel)

Adjustable counter-blade

Mobile refining screen

Rotary ejection pipe with adjustable discharge distance

Lubrication system for bearings

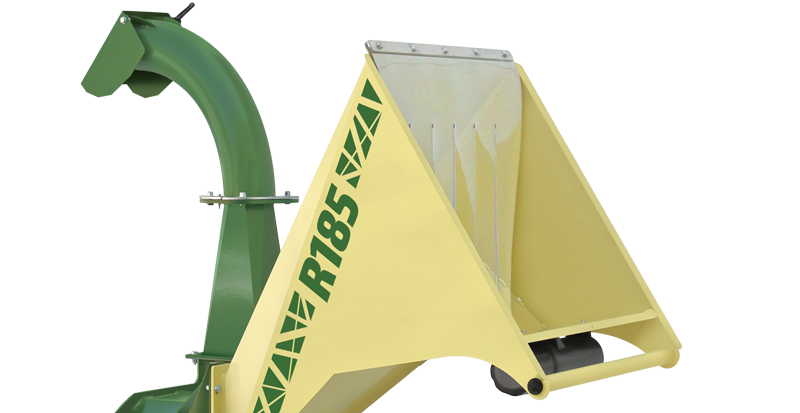

Hopper with handle for displacement of the machine

Belt transmission with clutch

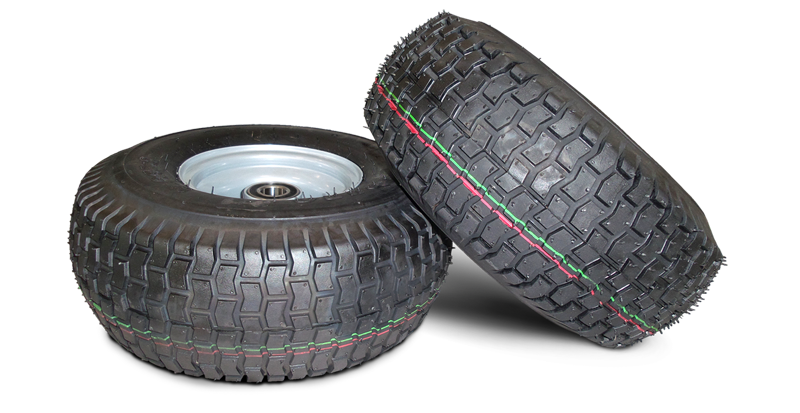

2 pneumatic wheels

HONDA GX390

Ejection pipe extension (400 mm)

Cutting system
Blades (hardened steel) N° 2
Hammers (hardened steel) N° 10
Counter-blade N° 1
Features
Hourly capacity m³/h* 6 - 7
Throat opening mm 160 x 150
To shred - Ø max.* mm 90
Motive power
Power hp/kW 13 / 9,6
Power source Petrol
Engine/motor HONDA GX390
Fuel consumption liters/h 2,8
Specifications
Length mm 1735
Width mm 860
Height mm 1765
Discharge height mm 1765
Introduction height mm 1135
Hopper size mm 600 x 585
Weight: NET kg 205
* Input material - Data depending on the kind of material and working conditions.
TERMS
Product origin Made in Italy
Warranty 2 years for EU countries / 1 year for non-EU countries - from invoice date
Delivery - Original spare parts Usually available, 45 days max. (from order date)
Identification - SCIP number (link) https://echa.europa.eu/it/scip-database
Instructions -SIP number (PDF)
The products are subject to technical evolution and this website may not be fully updated.
The data in the tables, the photos and pictures have to be considered informative and not binding.
